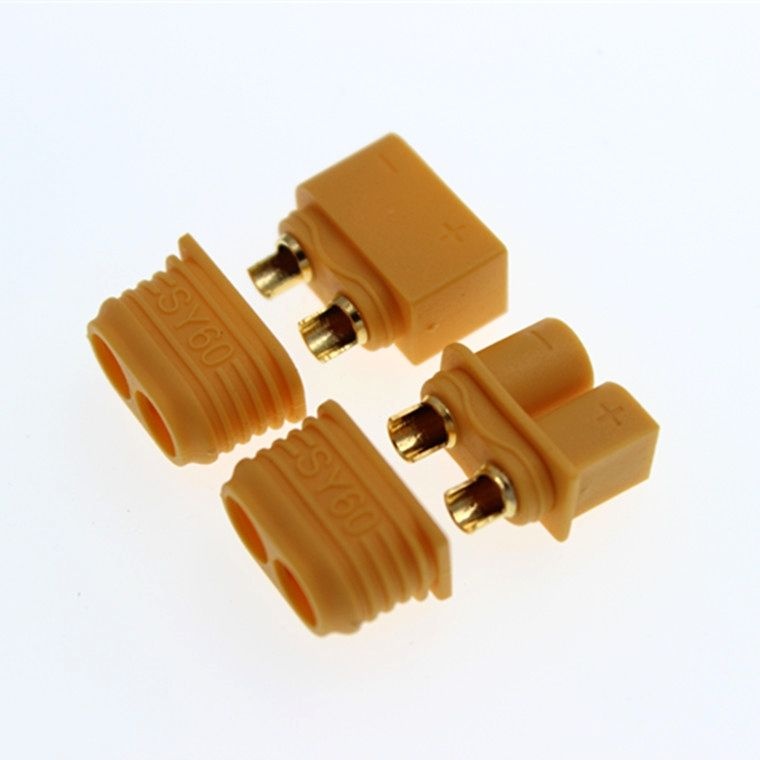

Custom Nylon SY60 Connector Yellow color
Custom Nylon SY60 connector Yellow color
I. Basic Parameters of SY60 connector
•Current: 60A (continuous current. Designed to handle 60 amperes continuously without exceeding 80°C. There is also a claim that it can continuously withstand up to 65 amperes of current).
•Insulator: Nylon. Made of high-temperature nylon material to ensure a solid high-current connection. The halogen-free flame retardant grade is UL94V0.
•Color: Available in red, blue, black, transparent, yellow and other custom colors.
•Weight: 6.7g/pair.
•Size: 140*120*33mm.
II. Performance Characteristics
•Easy to plug in and out. Can be easily connected even in the dark or when hands are cold.
•Easy to solder. With a semi-open threaded connector, it is easy to solder wires of various gauges.
•The internal contact is brass with gold plating, providing a good contact surface. The connection is firm and has low resistance.
•Suitable for projects such as small to medium-sized quadcopters and hexacopters. It is an ideal charging plug for high-performance batteries and chargers. Also suitable for low-power kits.
•The polarity is clearly marked. There are recommended polarity symbols indicated on the edges of the connector. The half with metal pins is the male connector. The half with metal sockets is the female connector.
•Unique design, beautiful and highly safe. The groove design at the end of the liner ensures moisture-proof. The non-slip surface makes it easier to use. There are clear signs of cathode and anode. The 180-degree soldering design is convenient for operation. Accurate size and safe to use.
III. Advantage Comparison
•Better than EC3 connector and an excellent replacement for T plug.
•According to customer customization requirements, replacement for normal XT60 connector, different style.
IV. Common Uses
•Widely used in the RC hobby industry. Usually sold as male-female pairs and suitable for projects involving batteries and motors.
V. Frequently Asked Questions
1.What is the rated current? Answer: 60 amperes. Designed to handle 60 amperes continuously without exceeding 80°C. There is also a claim that it can continuously withstand up to 65 amperes of current.
2.Is there spark suppression? Answer: Our patented X90S connector has spark suppression.
3.What size wire should be used? Answer: The ideal size of SY60 soldering lugs is to accept 10-18 AWG wires.
4.Is there a polarity mark on the connector? Answer: Yes. There are recommended polarity symbols indicated on the edges of the connector.
5.Which one is male and which one is female? Answer: The half with metal pins is the male connector. The half with metal sockets is the female connector.
