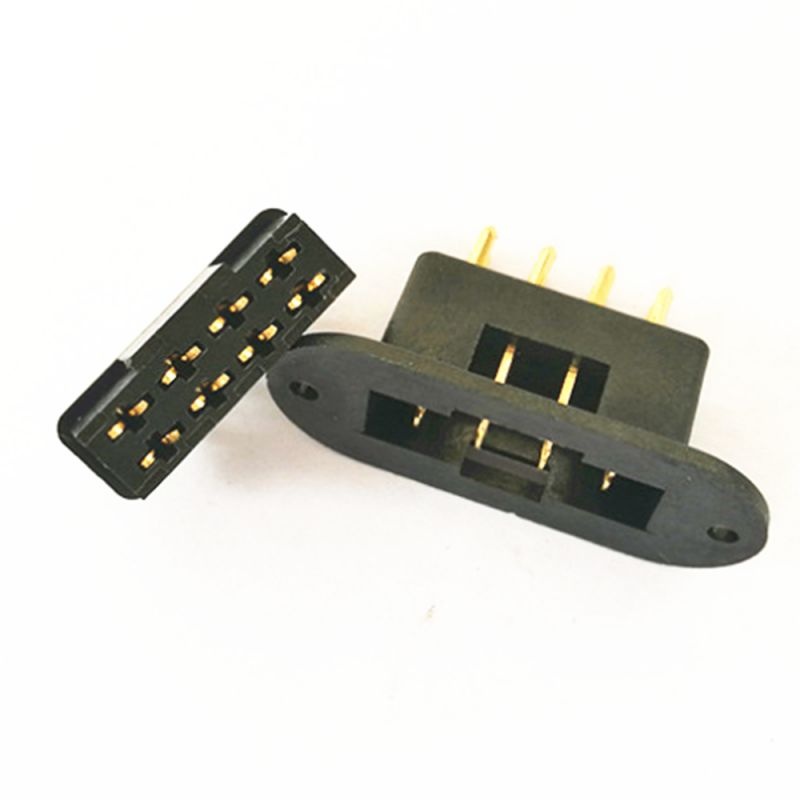

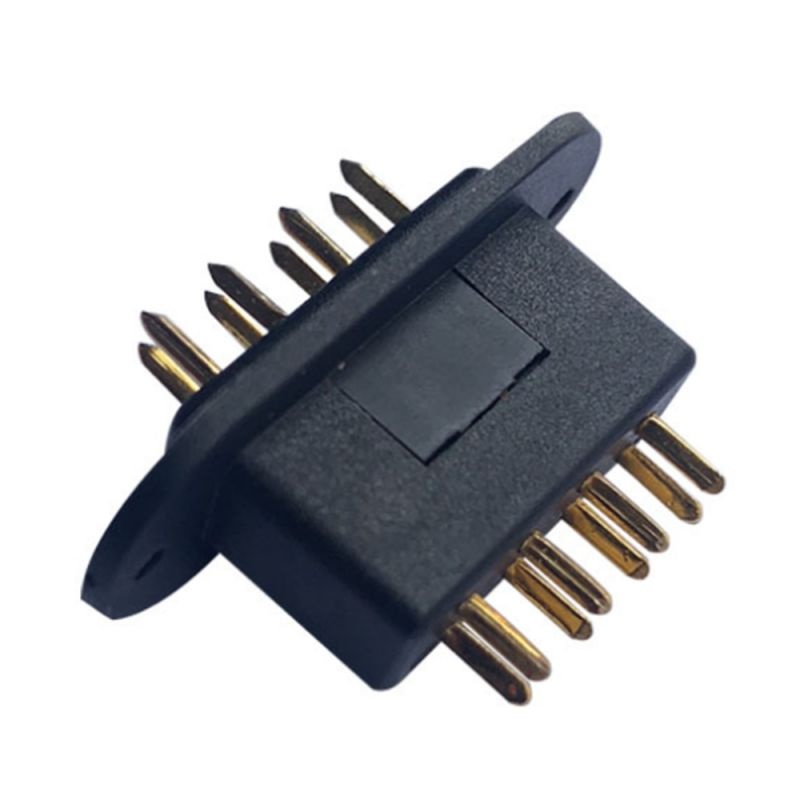

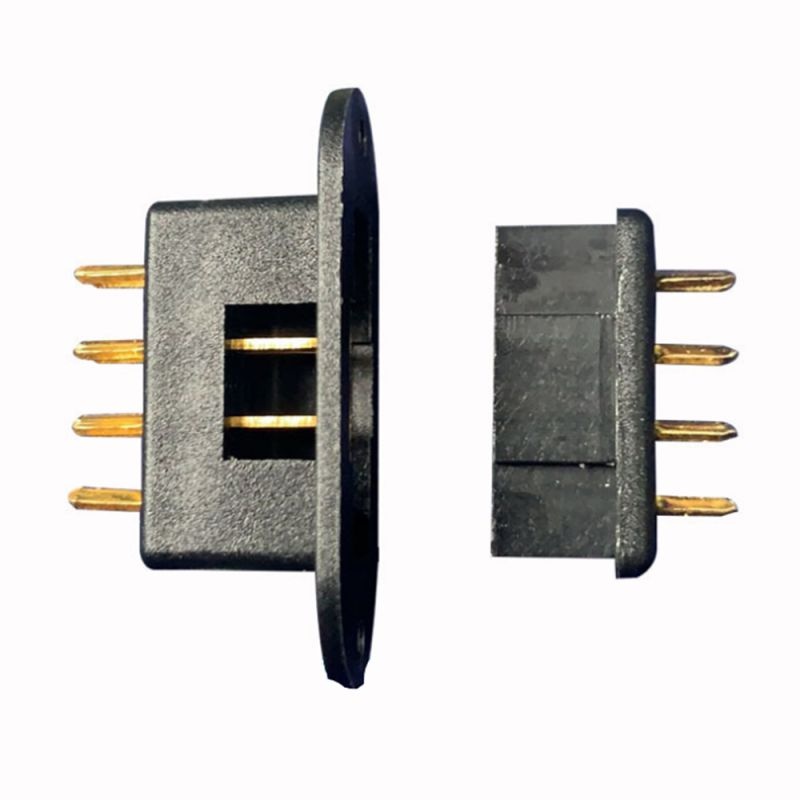

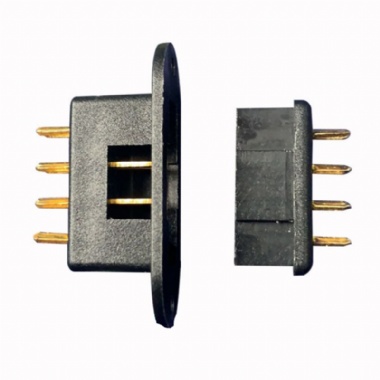

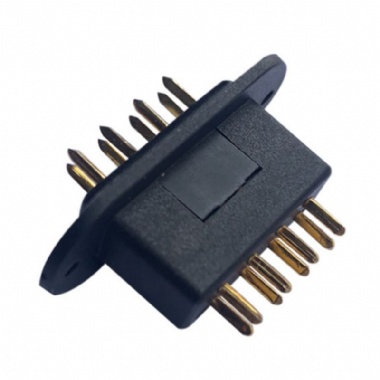

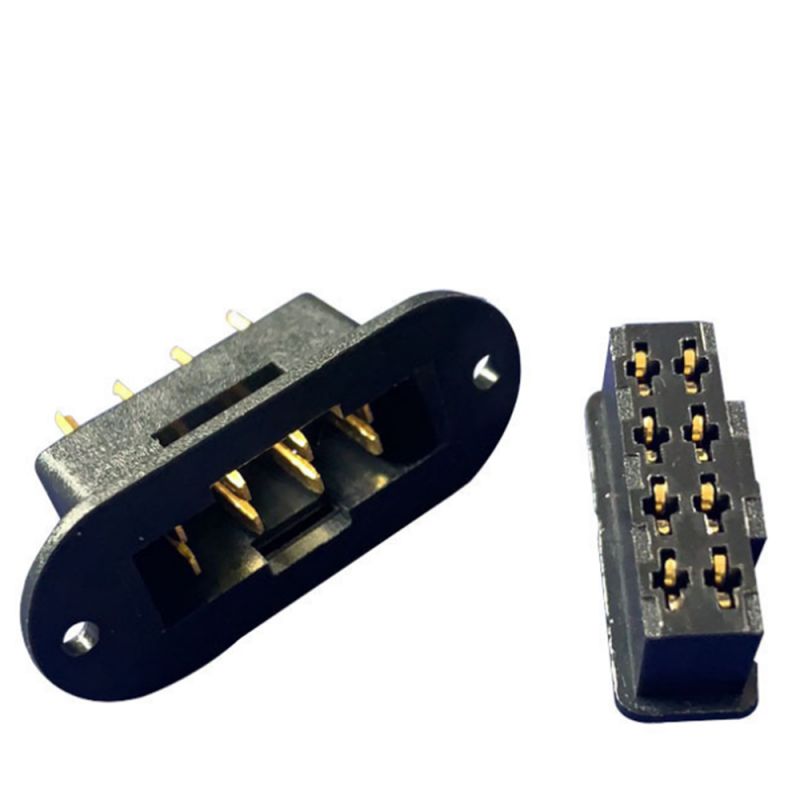

MPX 8P male and female connector

Just like the more common 6 Pin Multiplex Connectors, the MPX 8 Pin connectors allow for the disconnection of up to 8 separate wires/circuits at once. They can be employed for lights and/or servo cables. However, the size of the pins is of a slightly smaller gauge compared to some other connectors. Hence, we do not recommend their use for heavy-duty servos or digital servos as they might not be able to handle the larger current these require. If you do choose to use them for servos, I suggest using two pins for both the (+) positive and (-) negative circuits. The male connector (remember - the "male connector is always the one with the metal pins!) is crafted with a flange, which makes it possible to mount it firmly to a wing rib or fuselage side, thus making the connection between the two halves a bit easier to achieve.



These MPX 8 Pin connectors have become featured products: MPX 8 Pin connector to 2/3 * Futaba straight/twisted.
