I. Basic Parameters

Current Capacity: Rated at 60A continuous current. Engineered to handle 60 amperes continuously without exceeding 80 degrees Celsius.

Insulator Material: Constructed from high-temperature nylon. Ensures a solid high-current connection. The flame retardant grade is UL94V0.

Colors Available: Comes in red, blue, black, transparent, yellow, and can be customized to other colors.

Weight Per Pair: Weighs 6.7 grams.

Dimensions: Measures 140 by 120 by 33 millimeters.


II. Performance Characteristics

Easy Connectivity: Easily plugs in and out. Can be connected effortlessly even in the dark or when hands are cold.

Solder Friendly: Features a semi-open threaded connector, making it simple to solder wires of various gauges.

Internal Contact Quality: The internal contact is brass with gold plating, providing an excellent contact surface. Ensures a firm connection with low resistance.

Versatile Application: Suitable for projects like small to medium-sized quadcopters and hexacopters. An ideal charging plug for high-performance batteries and chargers. Also appropriate for low-power kits.

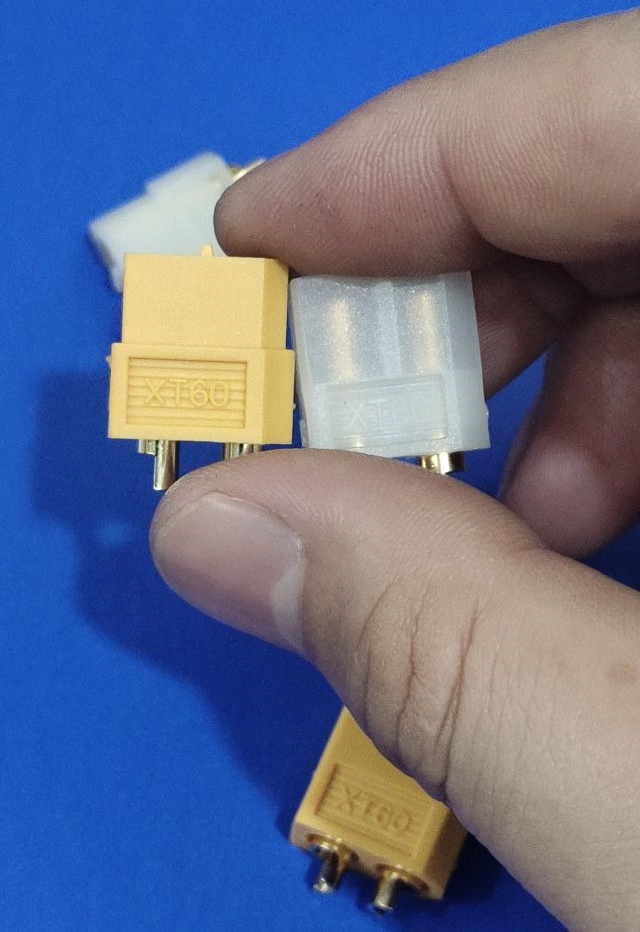

Clear Polarity Marking: Polarity symbols are clearly indicated on the edges of the connector. The half with metal pins is the male connector, while the half with metal sockets is the female connector.

Unique Design Features: Boasts a unique design that is not only beautiful but also highly safe. The groove design at the end of the liner guarantees moisture-proofing. The non-slip surface enhances ease of use. There are distinct signs for cathode and anode. The 180-degree soldering design is convenient for operation. Accurate in size and safe to use.


III. Advantage Comparison

Superior to EC3 Connector: Outperforms the EC3 connector and is an excellent replacement for the T plug.


IV. Common Uses

Widespread in RC Hobby Industry: Widely used in the remote control hobby industry. Usually sold in male-female pairs and suitable for projects involving batteries and motors.


V. Frequently Asked Questions

1.Is there spark suppression? Answer: Our patented X90S connector has spark suppression.

2.What size wire should be used? Answer: The ideal size of XT60 soldering lugs is to accept 10-18 AWG wires.

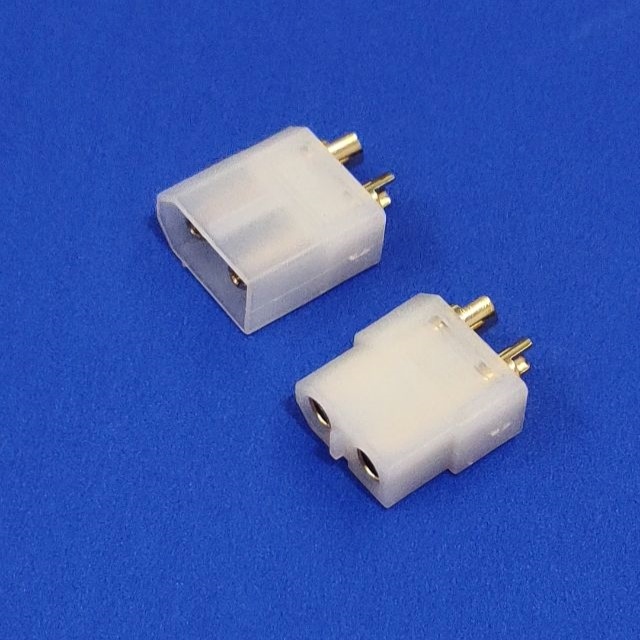

3.Which one is male and which one is female? Answer: The half with metal pins is the male connector. The half with metal sockets is the female connector.
