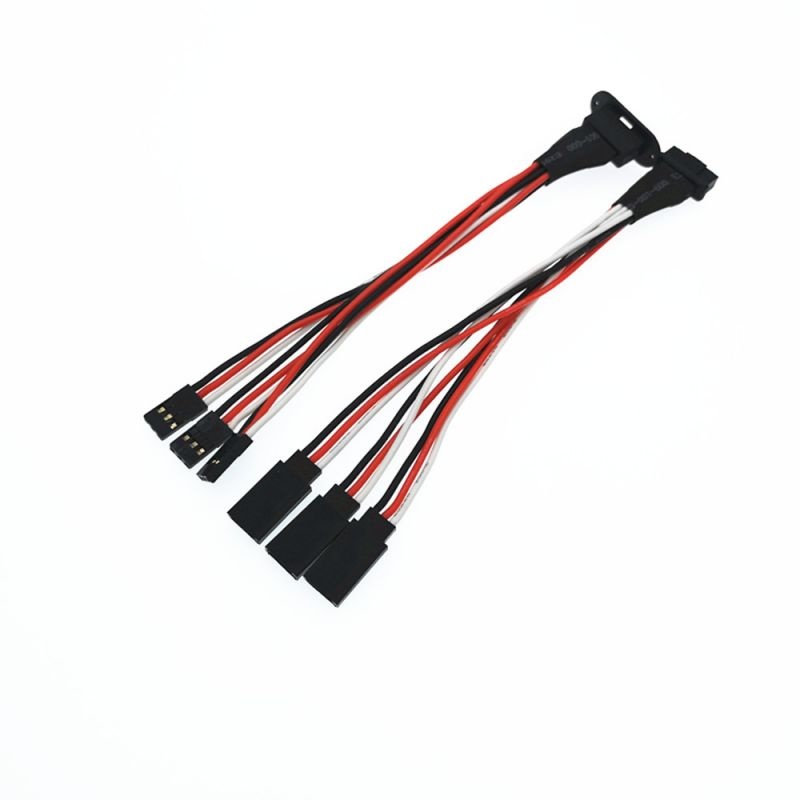

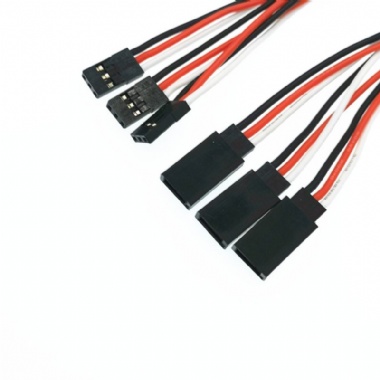

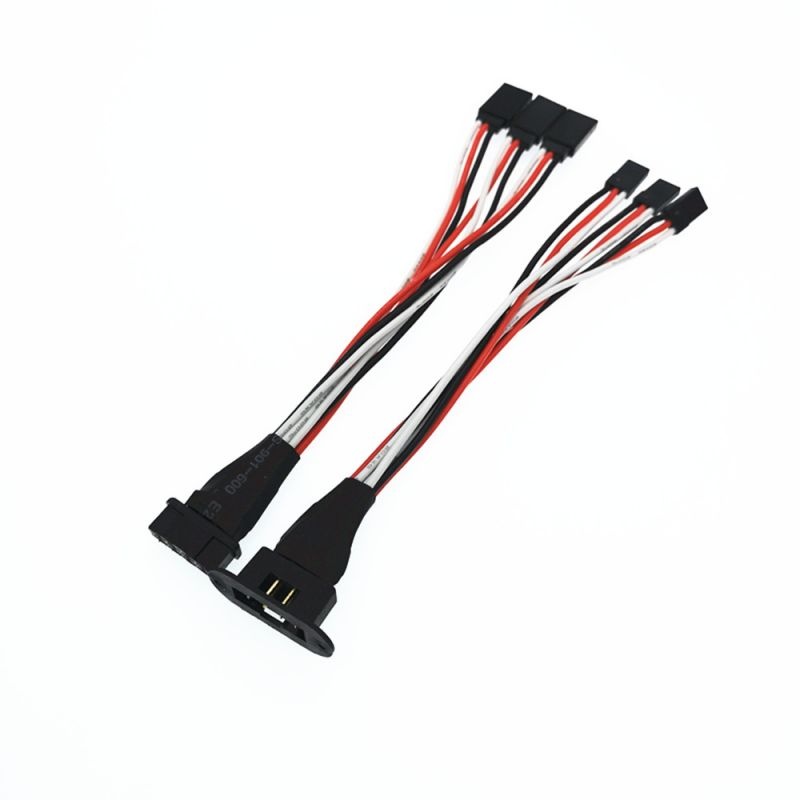

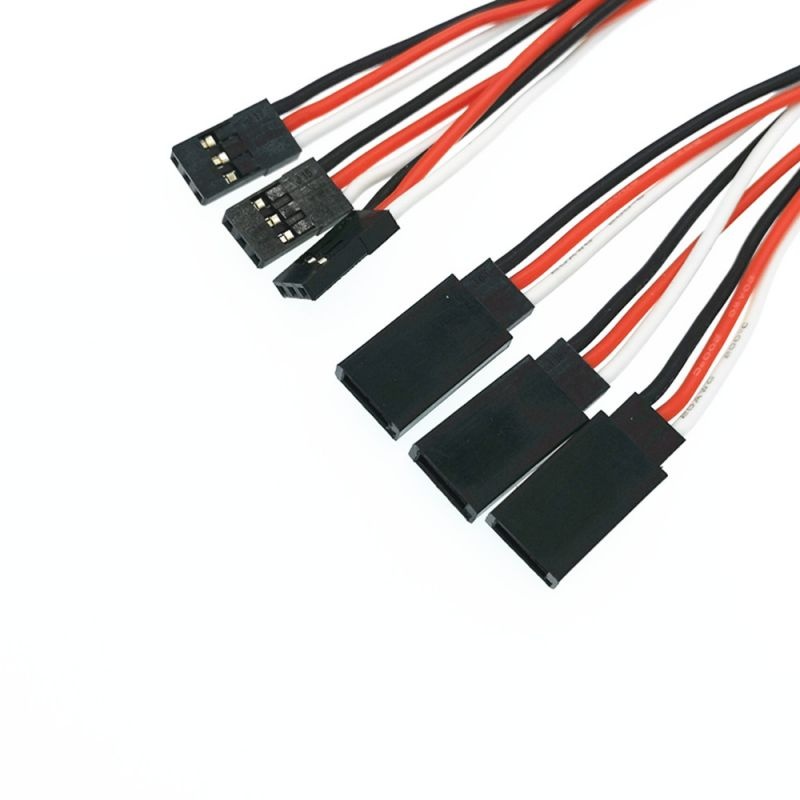

MPX 8P connector to 3 x Futaba

MPX 8P connector to 3 x Futaba

MPX 8P connector

‎11.1 x 8 x 1.7 cm

40 g

This MPX connector feature 8 pins, contained within a plastic housing. It is typically used for joining servo and multi-core signal connections. It particularly useful for airplanes, for plug-in connections between fuselage and wings or wing-to-wing wiring.

The special features such as reverse polarity protection, versatility and compact design have been supplemented by the fire protection class UL94 V-0.

Thus, the plug is the perfect connection, e.g. for the drive battery and controller or drives, or for other plug connections.

The contacts are made of a copper alloy, which is additionally nickel-plated before gold-plating.

An essential feature of this original are the contacts, which are freely stored in the plastic.

The pins are individually twisted, which means that the contacts can be found as best as possible when plugged into the MPX socket and a reliable connection is guaranteed.

This results in the lowest possible contact resistance and extremely many mating cycles are possible.
